148 Photos
2011 Link-Belt HC-238HII 150 ton Lattice-Boom Truck Crane
Located
Williston, ND
Williston, ND
Usage
22,889 hrs
22,889 hrs
Serial number
1F9H9K117BL028989
1F9H9K117BL028989
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15746352
In yard
No
Features
Air Conditioner, Eaton Fuller 10 Speed Manual Transmission, 7640.3 hrs Carrier Engine, 2009 US EPA Label, Detroit Series 60 6 Cylinder 14.0 L Diesel Carrier Engine, Anti Two-Block, Hirschmann Load Moment Indicator, Isuzu Diesel Upper Engine, 160 ft Boom, Auxiliary Hoist, Rooster Sheave, Johnson 1697 lb 6 Sheave 100 ton Hook Block, 757 lb 15 ton Overhaul Ball, 63440 lb Counterweight, T/A Crane Dolly

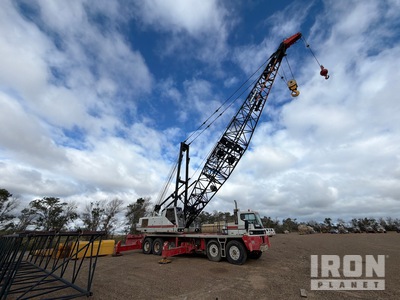

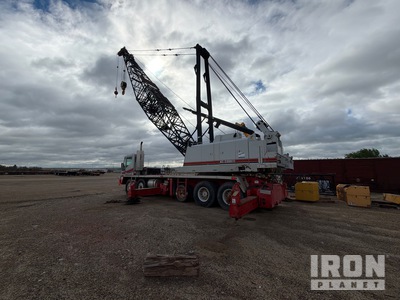

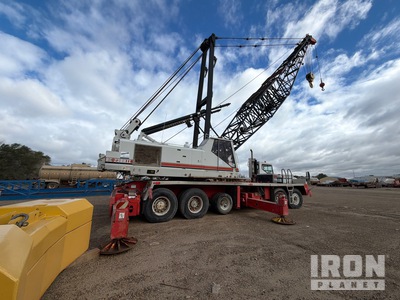

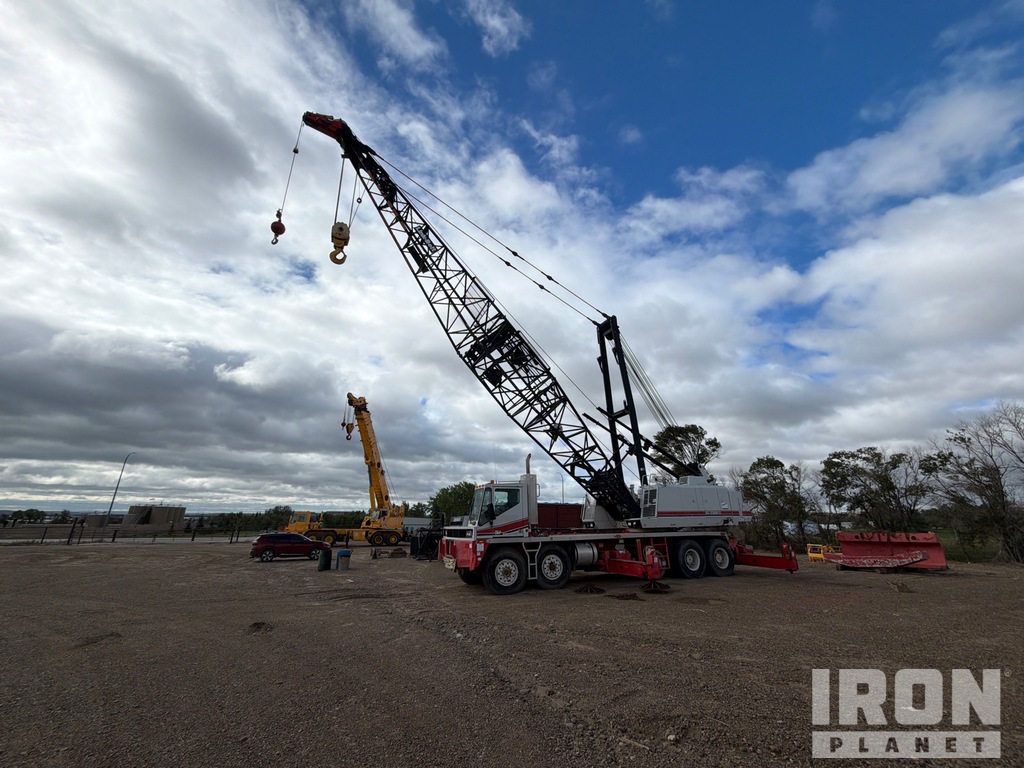

General Appearance
Serial Number / VIN
1F9H9K117BL028989
Hour Meter / Odometer
22889 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Indication of Additional Hours
There is an hour meter replacement/change label that has the following reading on it: 6092
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 5-02-2025
Safety Certification Report
Safety Certification Report Not Available
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
7640.3 hrs Carrier Engine
Seats/Armrests
Mirrors
Steering Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Air Conditioner
Inoperable
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
2009 US EPA Label
Emission Label
Blow-by (subjective visual observation)
Minor
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational
Retarder
Exhaust: Retarder
Clutch
Engages
PTO Pump
Operational
Steer Axle
Front Drive Axle
Dripping Leak
Rear Drive Axle
Axle Bump Stops
In place
Final Drives
Limited Function Check - Carrier
The drivetrain was operational except as noted., Dripping leaks
Carrier Chassis
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
External Electrical / Air Connections
Not operationally checked
Frame Condition
Cross Members
Tire Size
385/95R25 Front tires, 385/95R25 Rear tires
Tire Condition
Tread Depth
LF 29 /32", LR 29 /32", LMI 20 /32", LMO 20 /32", LRI 17 /32", LRO 17 /32", RRI 17 /32", RRO 20 /32", RMI 20 /32", RMO 20 /32", RR 29 /32", RF 29 /32", Tag LO 14 /32", Tag LI 14 /32", Tag RO 14 /32", Tag RI 14 /32"
Wheel Condition
Wheel Studs
Outrigger Beams
Outrigger Cylinders
Dripping leak on the left front cylinder, Dripping leak on the left rear cylinder, Dripping leak on the right rear cylinder
Outrigger Pads
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Hour Meter Reading
9071.3 Hours-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Control Station - Upper
Mirrors
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Not operationally checked with a load., Hirschmann
Controls Hydraulic or Air
Load Charts
Chart book in cab
Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Gauges
Hoist Brakes
Drum Rotation Indicator
Operational
Air Conditioner
Inoperable
Heater
Operational
Limited Function Check
Upper Engine
Emission Certification Label
US EPA certification label
A/C Compressor
Compressor will not engage
Blow by @ idle (subjective visual observation)
Minor
Starter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Limited Function Check (Engine)
The engine started and ran.
Crane Superstructure
Hoist Drums
Hydraulic Operation
Boom Drums
Hydraulic Operation
Hoist and Boom Clutches
Main Boom Pins
Pendant Line (Boom Tension Line)
Point Sheaves
Boom Point Section
Gantry/Mast
Boom Stops
Main Boom Chords
Boom Length
20 ft overall length, 10 ft tip section, 6 Sections, 30 ft Length, 40 ft base section, 40 ft / 20 ft
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Hook Rollers
Swing Drive
Operational
Limited Function Check
The main chassis components functioned when checked without a load.
Specialty
Main Load Block
Overhaul Ball
Counterweights
Additional information
