55 Photos
2016 Skyjack SJIII-3219 Electric Scissor Lift
Located
Avon, MA
Avon, MA
Serial number
22093994
22093994
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15673555
In yard
No
Features
19 ft Max Platform Height, 550 lb Max Weight Capacity, Platform Extension, Power to Platform, Solid Non-Marking Tires, Upper Control Box
Notes
COMES WITH IRONCLAD ASSURANCE. SUBJECT TO MASSACHUSETTS SALES TAX.

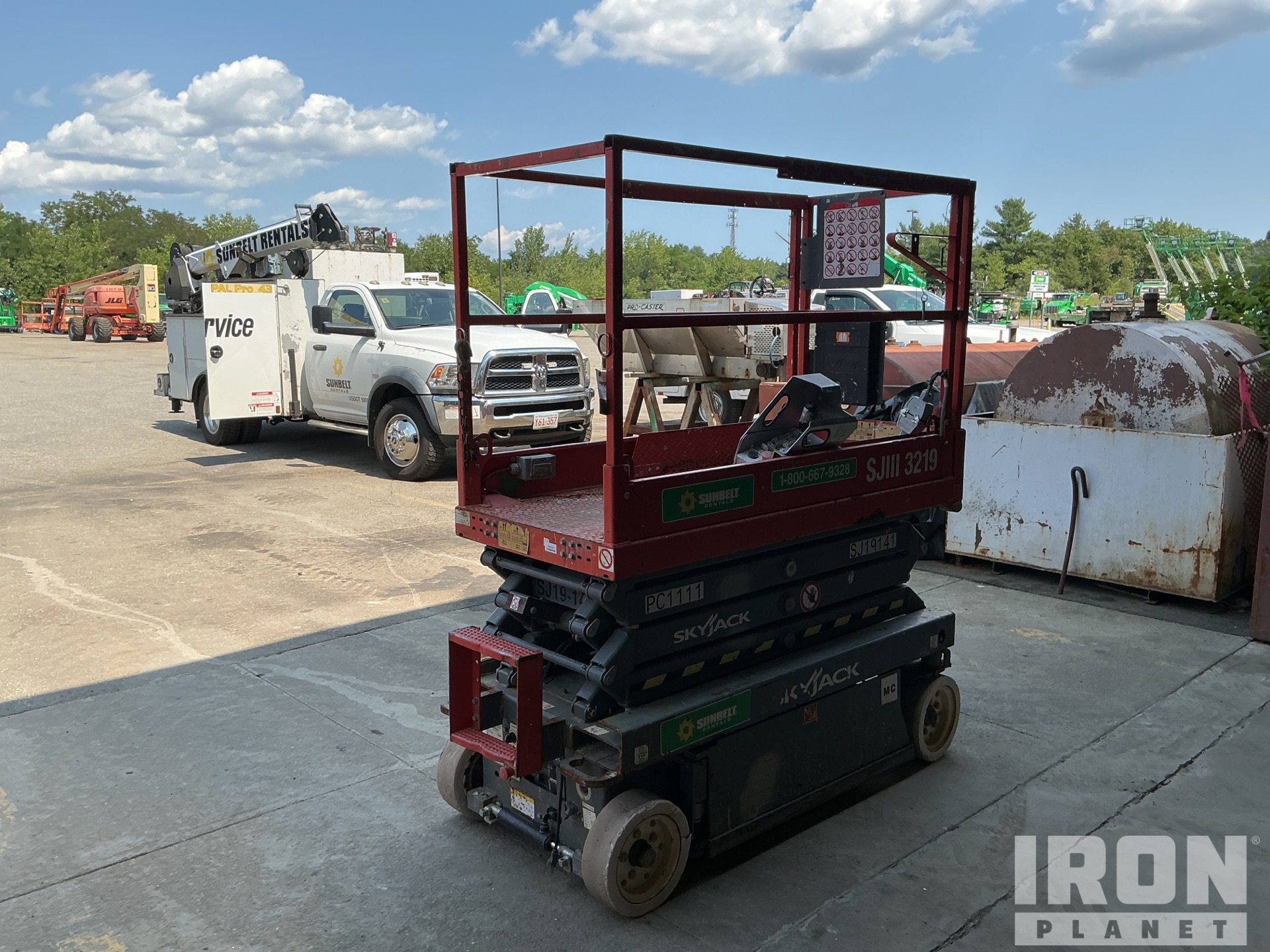

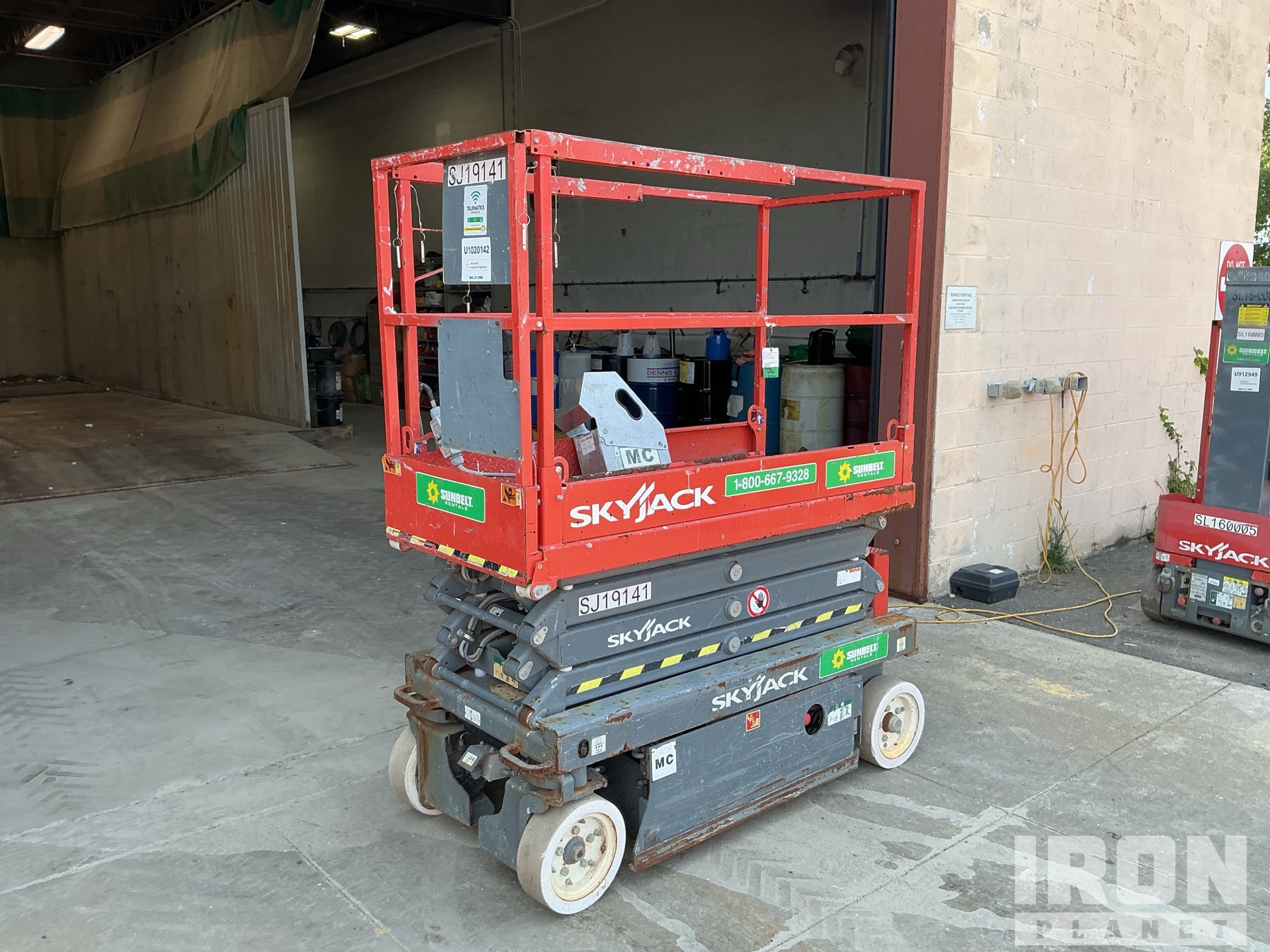

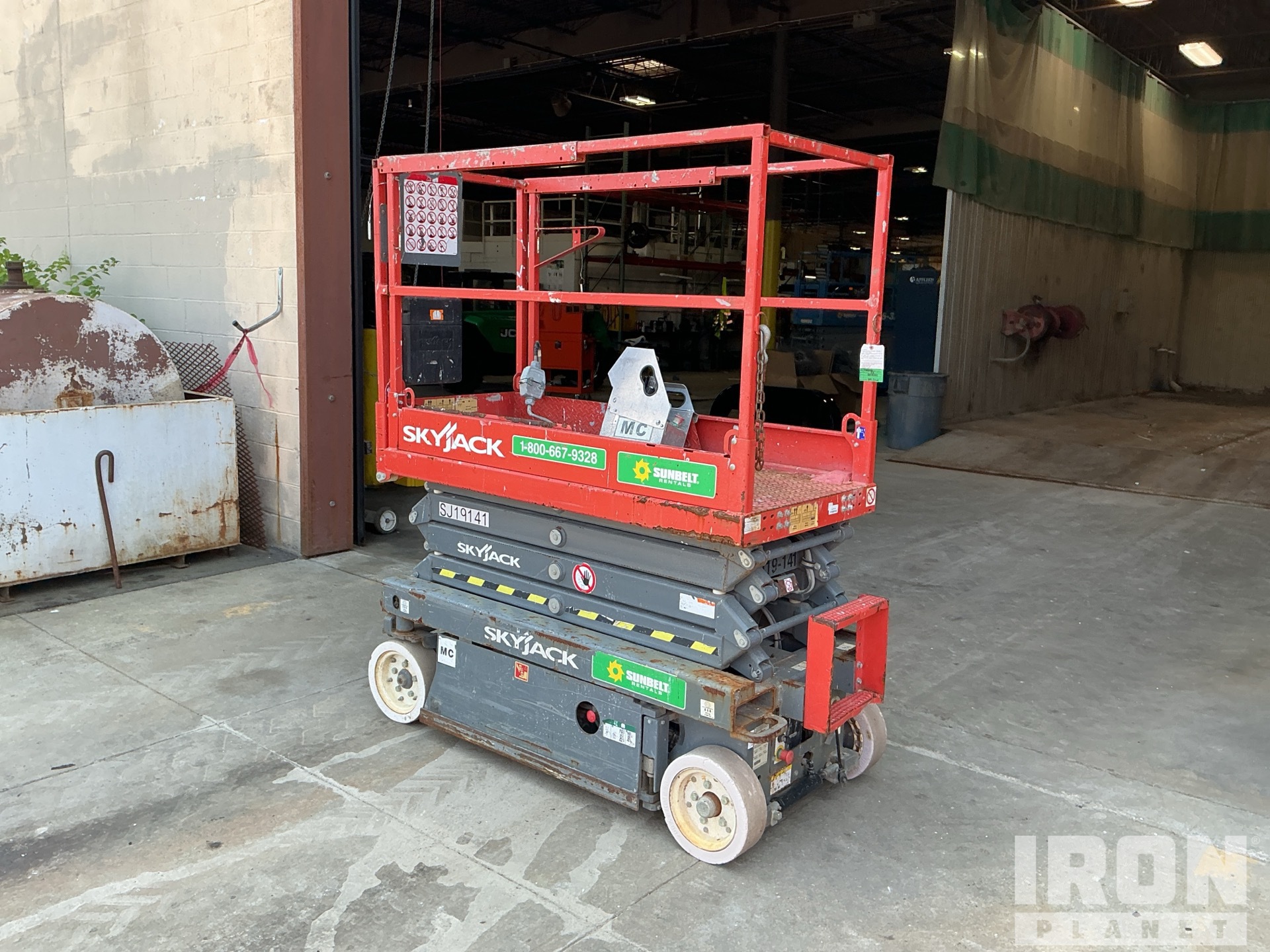

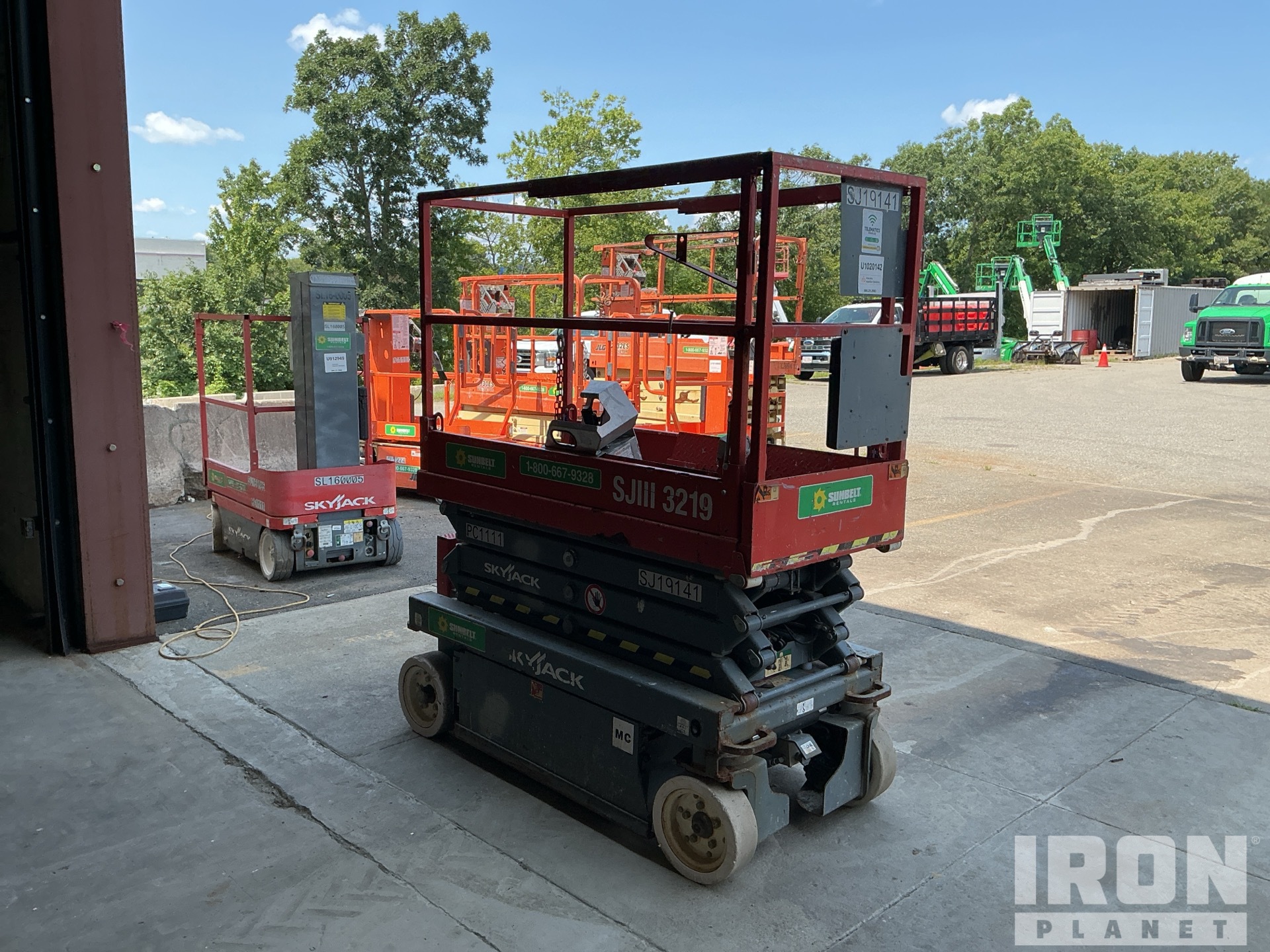

General Appearance
Serial Number / VIN
22093994
Hour Meter / Odometer
The hour meter reads 29 hours.-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Indication of Additional Hours
Meter has been replaced. Previous hours not noted on unit
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Bent
Hand Rails
Safety
Travel Alarm
Operational
Horn
Operational
Current Safety Manual
Yes, Wet
Current Operator/Maintenance Manual
Yes, Wet
ANSI Guidelines
Yes
Control Station Ground
Function Controls
Inoperable
Limited Function Check
The item was not operational. The main components could not be operationally checked.
Control Station Upper
Control Console
Emergency Shut Off Switch
Operational
Safety Control Hand/Foot Switch
Operational
Upper Function Controls
Limited Function Check
The main components are in place and operational as noted.
Electric Operating System
Operating Voltage
24 Volts
Battery Condition
Functioned during the inspection
Cables and Connections
Battery Charger
Included Appears normal - Not operationally checked, 110 Volt, Single Phase
Limited Function Check
The electrical system was operational.
Drivetrain
Drive Motors
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses
Lift Cylinders
Steering Cylinder
Limited Function Check
The hydraulic system was operational.
Chassis
Brake System
The brake system functioned, stopping and holding the machine.
Steering Linkage
Frame Condition
Scissor Linkage
Platform Condition
Platform Extension
Left Front Tire
Cracks, Chunks missing
Left Rear Tire
Cracks, Chunks missing
Right Rear Tire
Cracks, Chunks missing, Tears
Right Front Tire
Cracks, Chunks missing
Wheel Condition
No visible damage or missing components
Wheel Studs
Pothole Protection Bars
Limited Function Check (Scissor-lift)
The main components functioned with minor wear throughout.
