154 Photos
2021 XCMG XCT80L5 80 ton 8x4x4 Hydraulic Truck Crane
Located
Jebel Ali Free Zone, ARE
Jebel Ali Free Zone, ARE
Usage
2,274 km
2,274 km
Serial number
LXGCPA508MA006185
LXGCPA508MA006185
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15162881
In yard
Yes
Features
Air Conditioner, 10 Speed Manual Transmission, 910 hrs Carrier Engine, WEICHAI 6 Cylinder Diesel Carrier Engine, Requires Diesel Exhaust Fluid, Air Conditioner, Anti Two-Block, HIRSCHMANN Load Moment Indicator, 12.4 m Minimum 47.5 m Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 10.5 m to 17.5 m Bifold Swingaway Offset Jib, 3 Sheave Hook Block, Overhaul Ball, 11.5 ton Counterweight, Counterweight Removal System

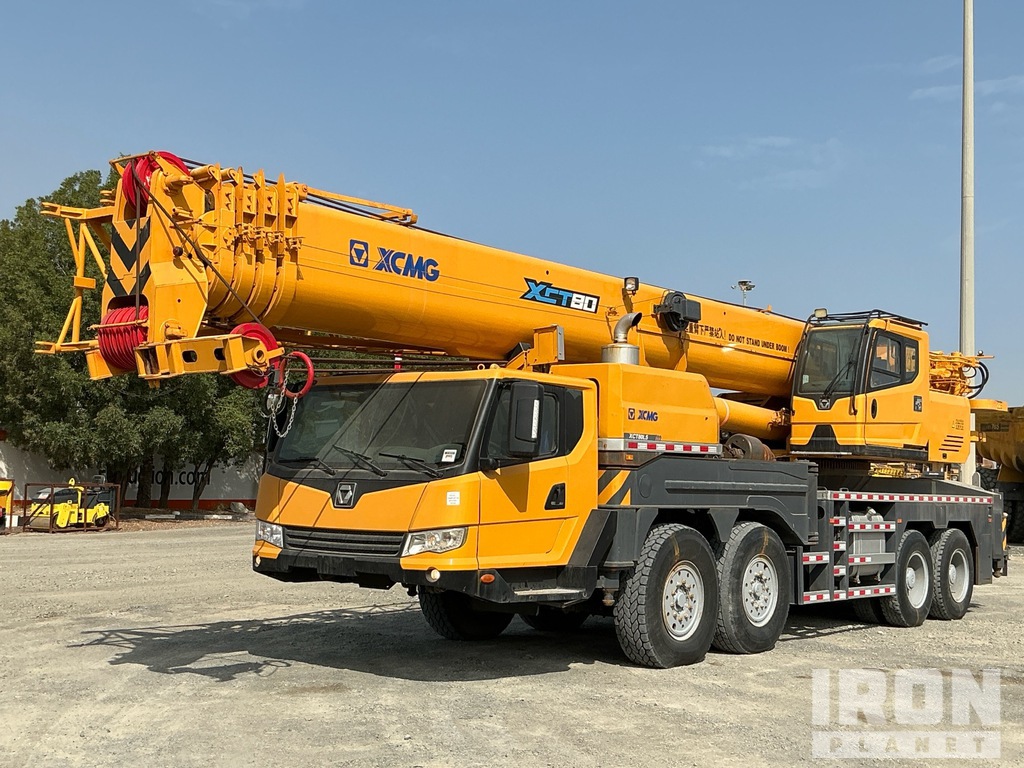

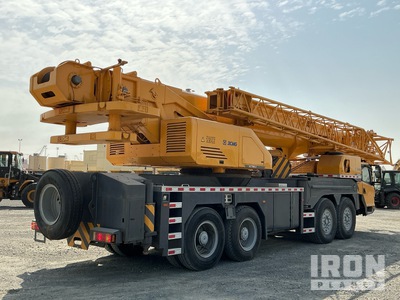

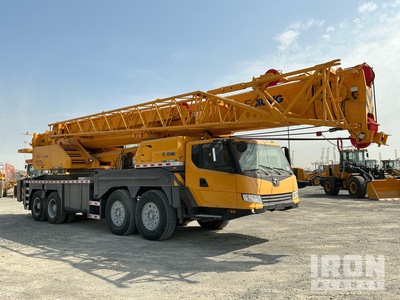

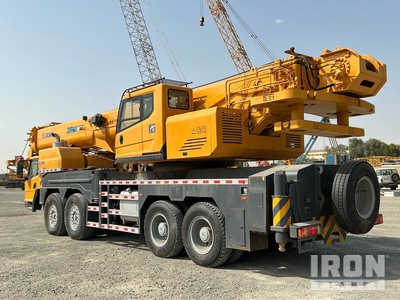

General Appearance
Serial Number / VIN
LXGCPA508MA006185
Hour Meter / Odometer
2274 km-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational, Some not operational, Outrigger beam lights lights are not operational
Load Chart
Yes
Safety
Travel Alarm
Inoperable
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
910 hrs Carrier Engine
Mirrors
Window Controls
Seats/armrests
Seat Belts
Operational
Steering Control
Hard steering
Horn
Operational
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational, Battery lights stay on
Gauges
Operational
Gear Selector
Brake Control
Engine Brake
Operational
Clutch
Engages
PTO Control
Air engaged, Operational
Air Conditioner
Inoperable
Heater
Inoperable
Limited Function Check
The main components are in place and operational as noted. Instrument panel stays on even the ignition switch is already in off position
Engine
A/C Compressor
Compressor missing
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Radiator fins damage
Oil Leaks
Oil Pan
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational
Retarder
Exhaust: Retarder
Clutch
Engages
PTO Pump
Operational
Steer Axle
Center Drive Axle
Rear Drive Axle
Axle Bump Stops
Not all in place
Final Drives
Limited Function Check - Carrier
The drivetrain was operational without a load.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Frame Condition
Tire Condition
Chipping, cracks
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Stabilizer Cylinders
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Hour Meter Reading
12735 Hours-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Glass
Seats/Armrests
Safety Lock Out/Stop
Load Moment Indicator
Not operationally checked with a load
Anti Two Block
Not operationally checked
Hydraulic Controls
Exterior Lights
Air Conditioner
Inoperable
Heater
Inoperable
Limited Function Check
The main components are in place and operational as noted.
Crane Superstructure
Main Boom Pins
Main Boom Sections
Sheaves
Minor wear
Boom Head Section
Wear Pads
Wear
Turntable Bearing
Bottom Covers
Limited Function Check
The main crane components functioned with wear and damage.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Missing
Crane Superstructure Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Specialty
Jib
Main Load Block
Overhaul Ball
Heavy wear
Counterweights
Additional information
