144 Photos
2023 Kleemann MSS802EVO Tracked Screen Plant
Located
Zevenbergen, NRDB, NLD
Zevenbergen, NRDB, NLD
Usage
1,052 hrs
1,052 hrs
Serial number
WKB0K082JKLA00074
WKB0K082JKLA00074
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15664425
In yard
Yes
Features
John Deere 4045WG301 4 Cylinder 101 kW Diesel Engine, 2750 mm x 5200 mm Apron Feeder 4880 mm x 1550 mm Double Deck Screen, 1200 mm Wide Feed Conveyor, 1200 mm Wide Under Screen Conveyor, 900 mm Wide Left Discharge Conveyor, 900 mm Wide Right Discharge Conveyor, 1400 mm Wide End Discharge Conveyor, Cable Remote Control, 400 mm Triple Grouser Track Shoes
Notes
** Non Duty Free Circulation EU **

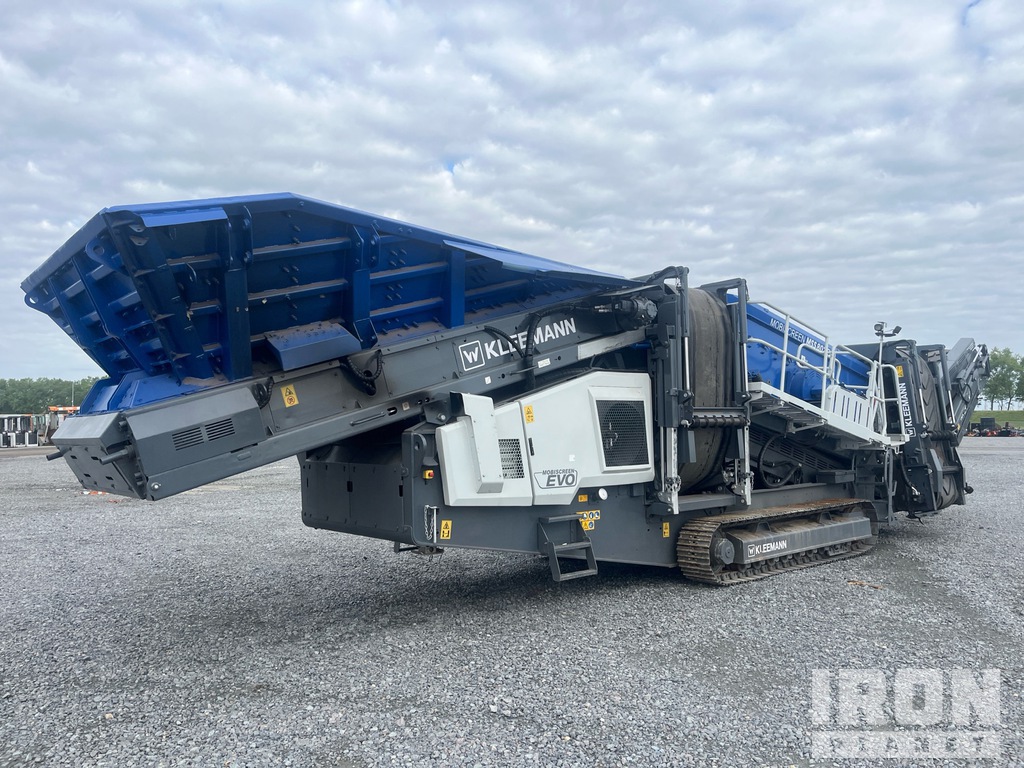

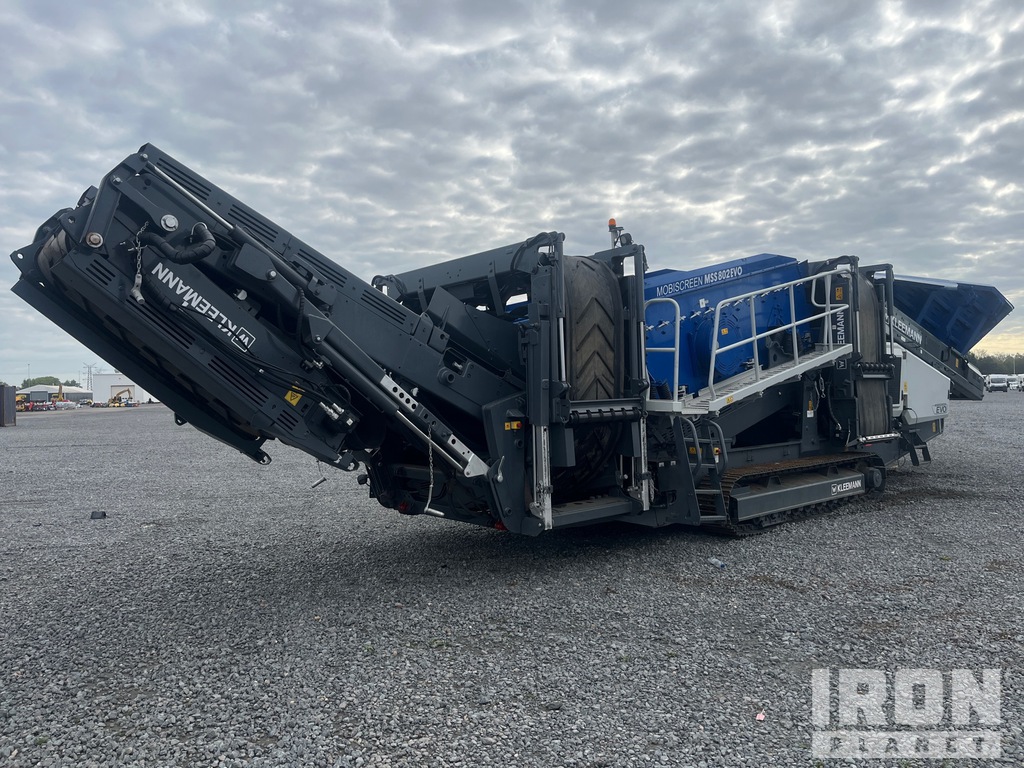

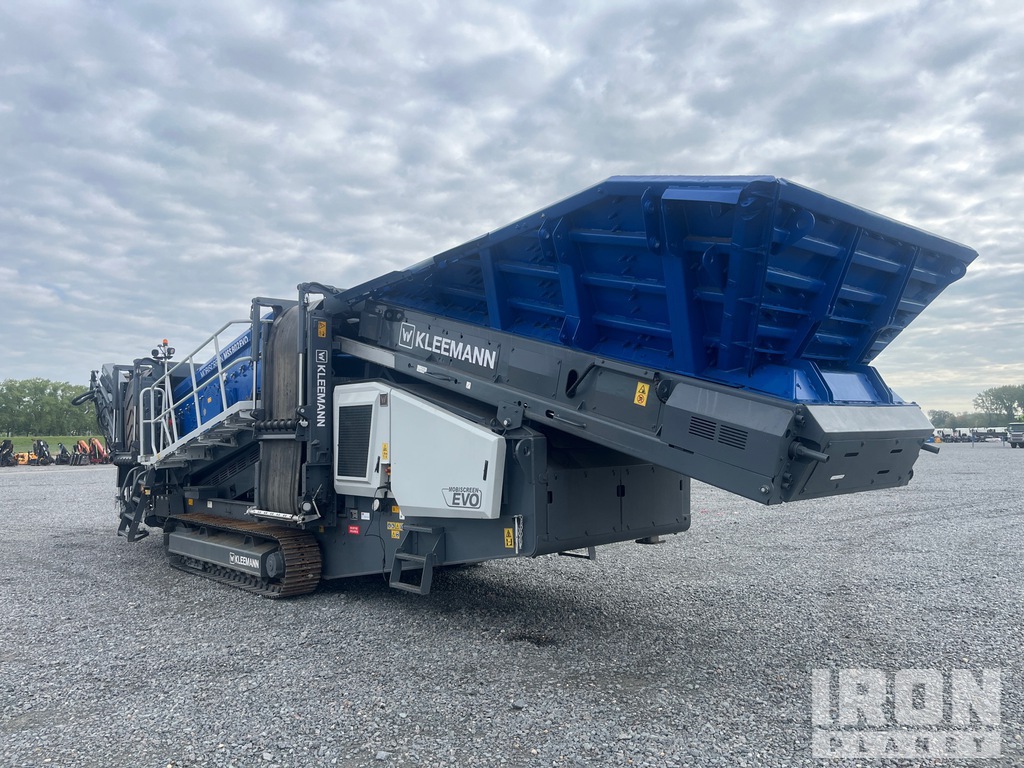

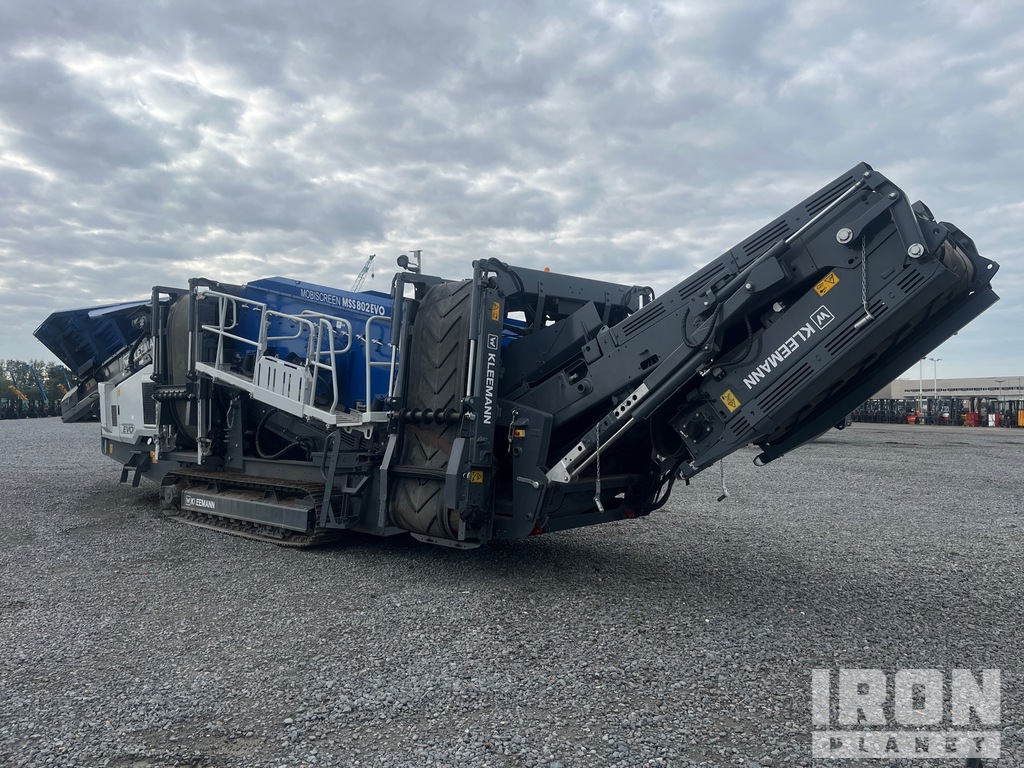

General Appearance
Serial Number / VIN
WKB0K082JKLA00074
CE Mark
CE Marked
Hour Meter / Odometer
1052 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Certification Label
EC certification label
Blow by @ idle (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
Conveyor Cylinders
Stabilizer Jack Cylinders
Dripping leak, Hose from jack cylinder leaking
Power Travel Drive System
1 Travel Speed, Travels properly
Limited Function Check
The hydraulic system was operational.
Chassis
Feed Conveyor Condition
Feed Conveyor Drive Motor
Operational
Discharge Conveyor Condition
Discharge Conveyor Drive Motor
Operational
Discharge Conveyor Rollers
Screen Deck
Deck Frames / Wear Bars
Chute Condition
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
20 mm
Left Track Links
Left Track Bushings
Damaged bushings
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
19 mm
Right Track Links
Right Track Bushings
Bushings have not been turned, Small crack visible on bushing
Right Track Rollers
Right Idler
Right Sprocket
