101 Photos
Parker's RS 2540 Jaw Crusher
Located
Magnetawan, ON, CAN
Magnetawan, ON, CAN
Usage
1,361 hrs
1,361 hrs
Serial number
0898056054
0898056054
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15839590
In yard
No
Features
Cat 3306 6 Cylinder Diesel Engine, 7 ft 6 in x 17 ft 9 in Vibratory Pan Feeder 42 in x 30 in Jaw Crusher, 32 in x 9 ft 10 in Cross Belt Magnet, Tri/A Carrier, Spring Suspension, Hydraulic Leveling

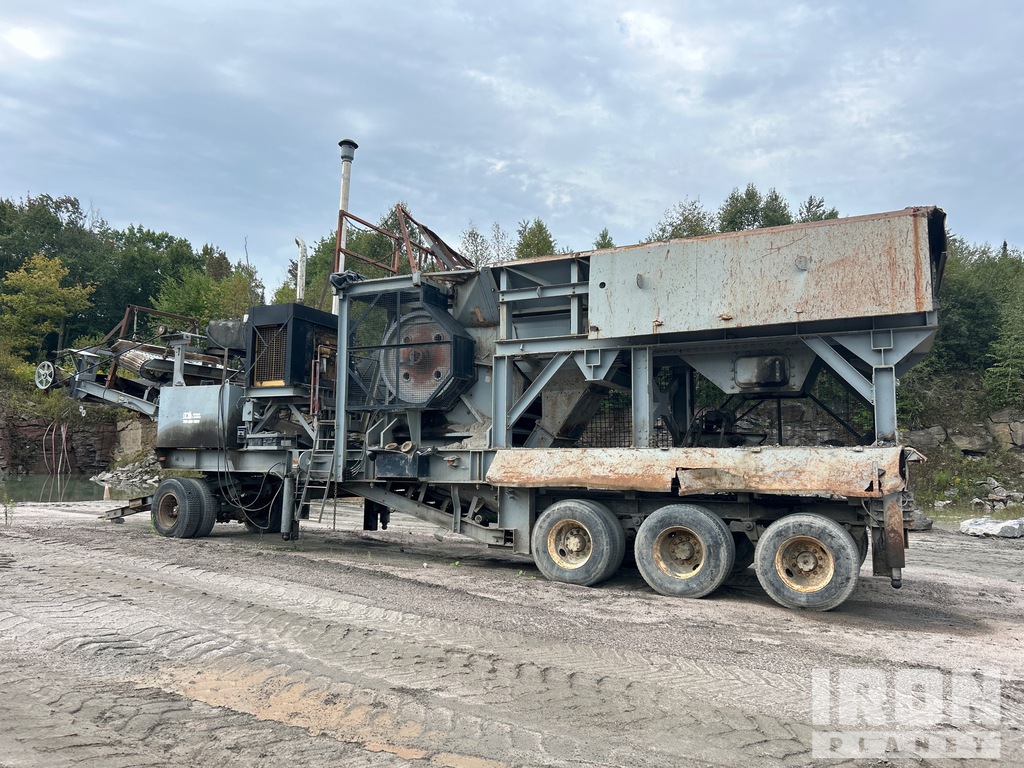

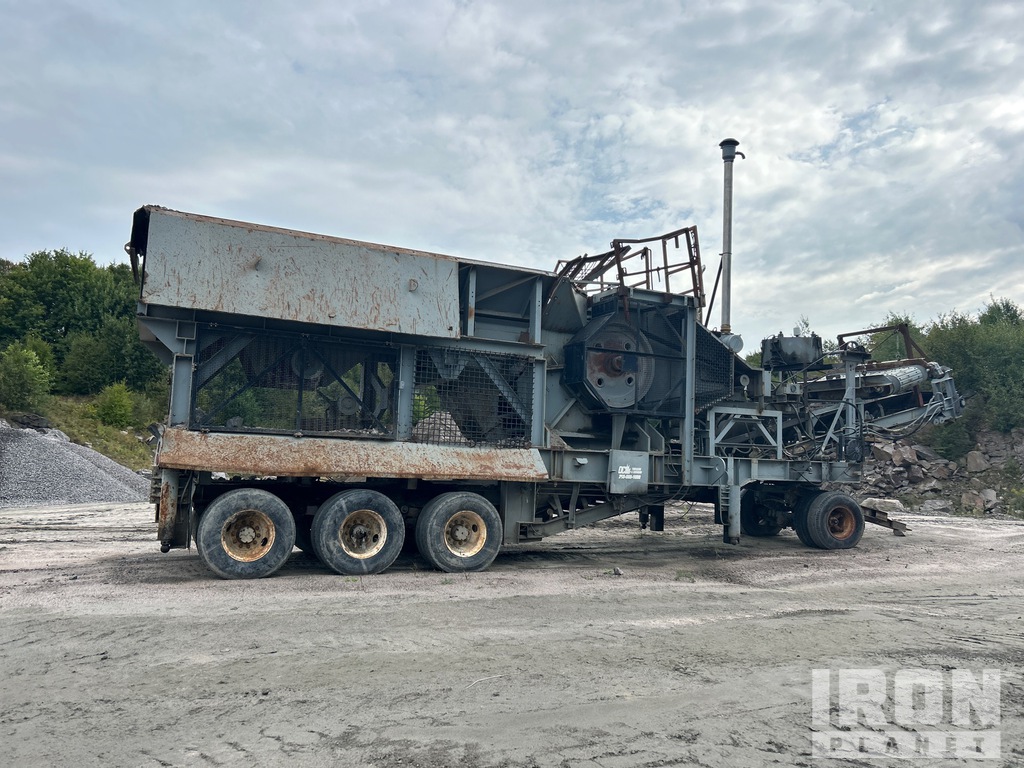

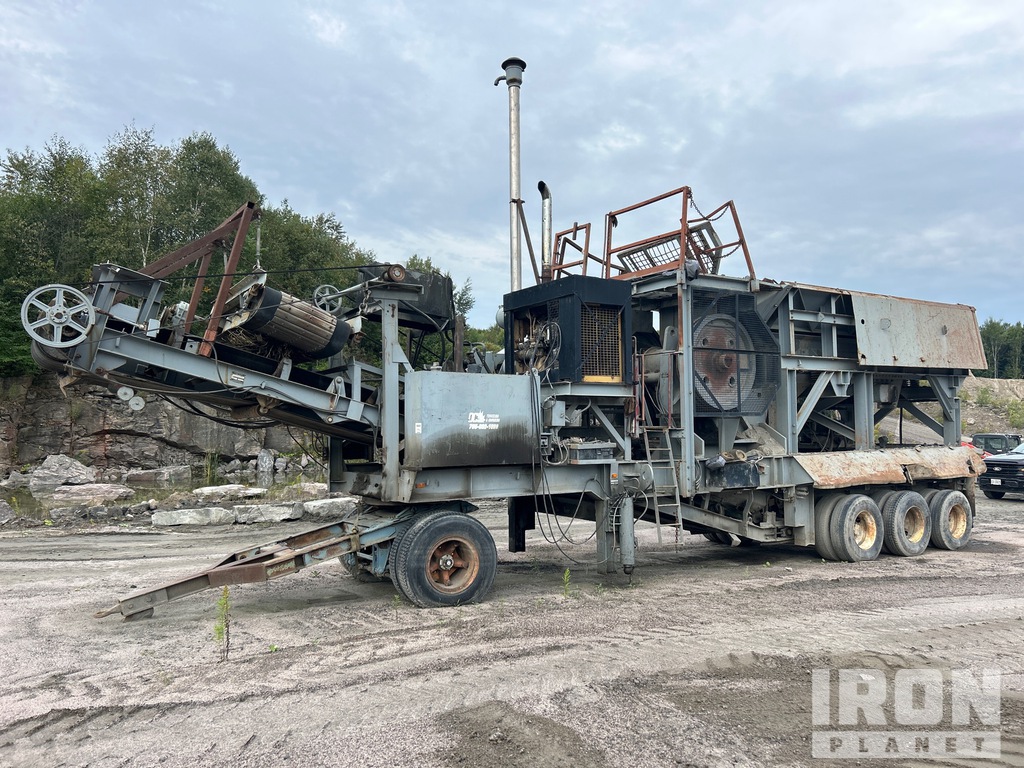

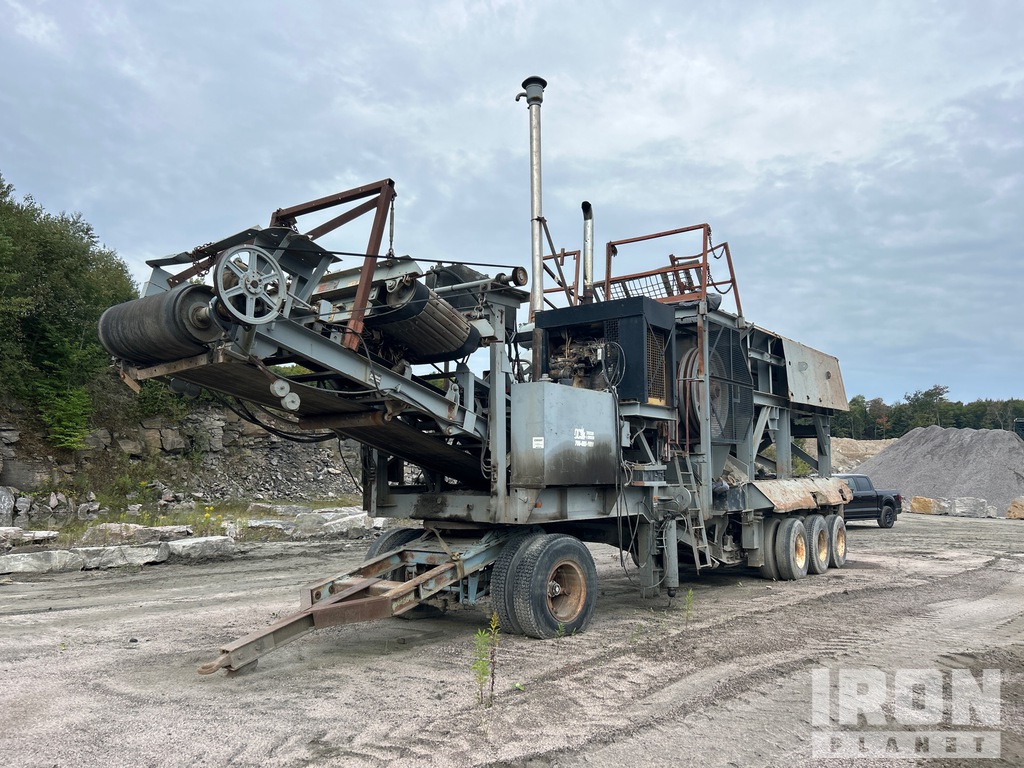

General Appearance
Featured Photo
Serial Number / VIN
0898056054
Hour Meter / Odometer
1361 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Gauges
Operational
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
No US EPA Label Present
Emission Certification Label
None found
Block Heater
No
Blow by @ idle (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
Side of engine
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Needs new 3 way valve to control feeder pan
Hydraulic Tank
Dripping leak, Tank under feeder is leaking
Hoses
Stabilizer Jack Cylinders
Dripping leak
Auxiliary Hydraulic Plumbing
Not operationally checked, Rear
Limited Function Check
The hydraulic system could not be operationally checked.
Chassis
Feed Hopper
Crusher Base Frame
Crusher Chamber Frame
Jaw, Blow Bar and Anvil Wear Surface
Crusher Drive System
Not functionally checked
Discharge Conveyor Condition
Discharge Conveyor Drive Motor
Not operationally checked, Hydraulic and belt driven drive motor
Discharge Conveyor Rollers
Discharge Conveyor Head and Tail Pulley
Carrier
Axle Condition
Trailer Brakes
Air
Brake Lines/Hoses
Limited Function Check
The main chassis components could not be operated.
Tire Size
All of the tires are the same size
Tire Condition
Wheel Condition
Wheel Studs
Springs/Hangers Condition
Tongue/ Hitch Condition
Lunette ring
Power Receptacle Functional
Not operationally checked
Lights/Wiring Condition
Not operationally checked
Marker Lights Functional
Not operationally checked
Brake Lights Functional
Not operationally checked
Turn Signals Functional
Not operationally checked
License Plate Light Functional
Not operationally checked
Frame Rails/ Main Beams Condition
Stabilizer Jacks
Hydraulic, The stabilizers could not be operationally checked
