2003 Grove TMS9000E 90 ton 8x4x4 Hydraulic Truck Crane
Located
Johnson city, TN
Serial number
223515
Loading...
Detailed equipment information
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#14048596
In yard
No
Year
2003
Manufacturer
Model
Asset type
Serial number or VIN
223515
Features
Air Conditioner, Eaton Fuller 10 Speed Manual Transmission, 4326 hrs Carrier Engine, US EPA Label, Cummins ISM 6 Cylinder Diesel Carrier Engine, Air Conditioner, Anti Two-Block, Grove EKS4 Load Moment Indicator, 36.8 ft Minimum 141.8 ft Maximum Boom Length, Auxiliary Hoist, 33 ft to 72 ft Extendable Swingaway Jib, 1507 lb 55 ton Capacity Johnson 5 Sheave Hook Block, 404 lb 12 ton Capacity Overhaul Ball, 14.4 ton Counterweight, Additional: Single Sheeve Load Block
Notes
No title available, sold with Bill of Sale only.
General Appearance
Picture, Left Front Corner

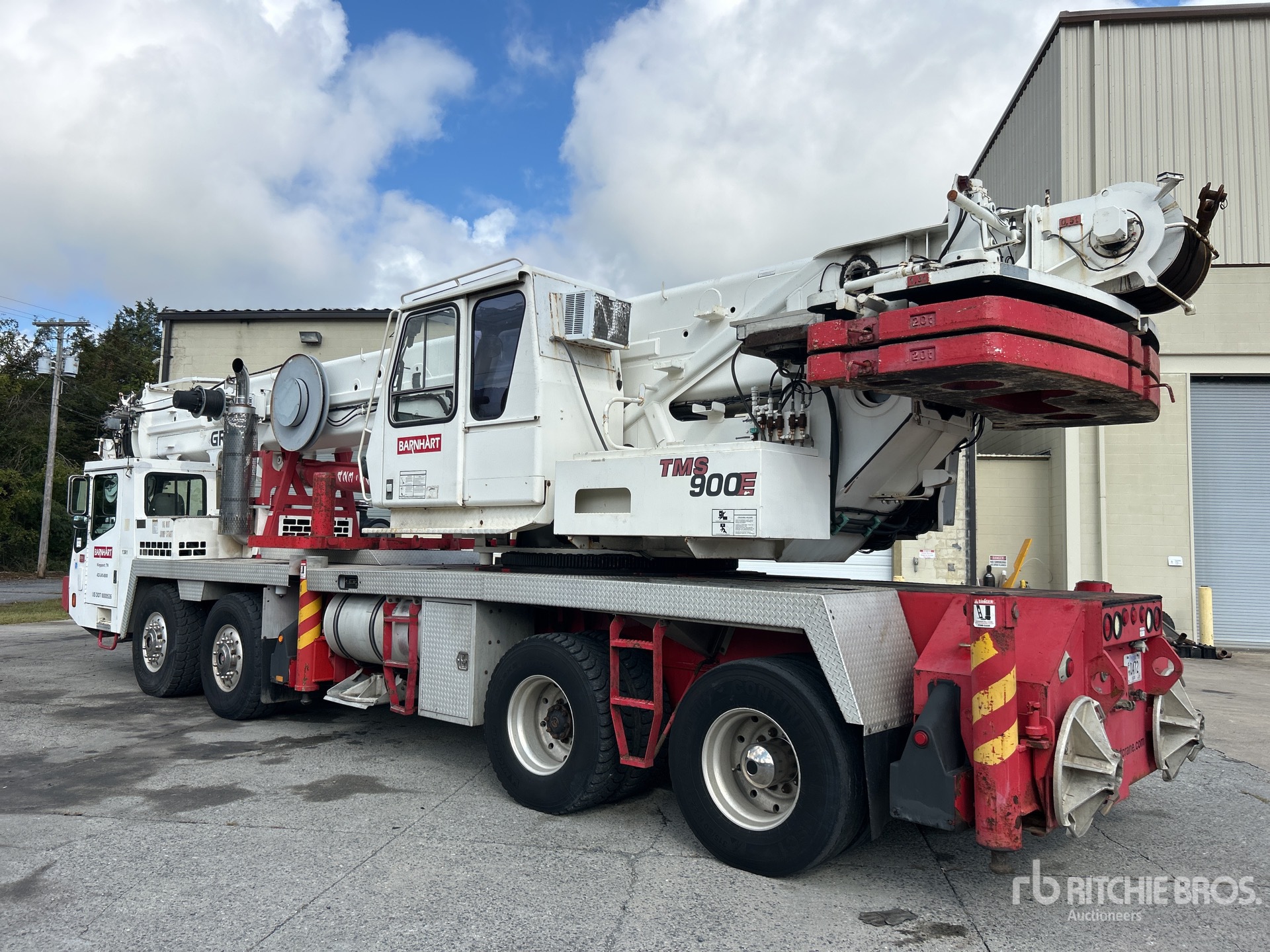

Picture, Left Rear Corner

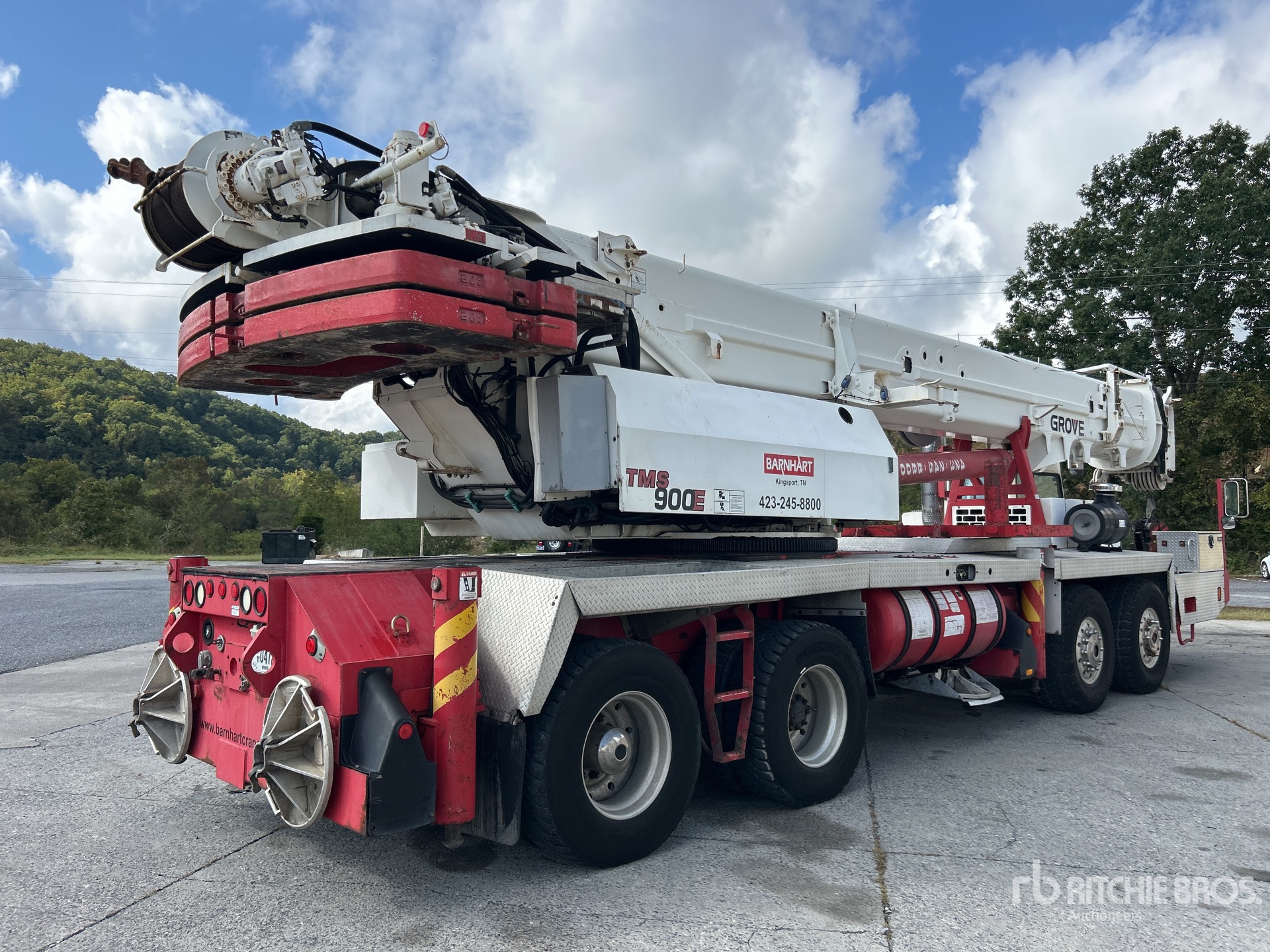

Picture, Right Rear Corner

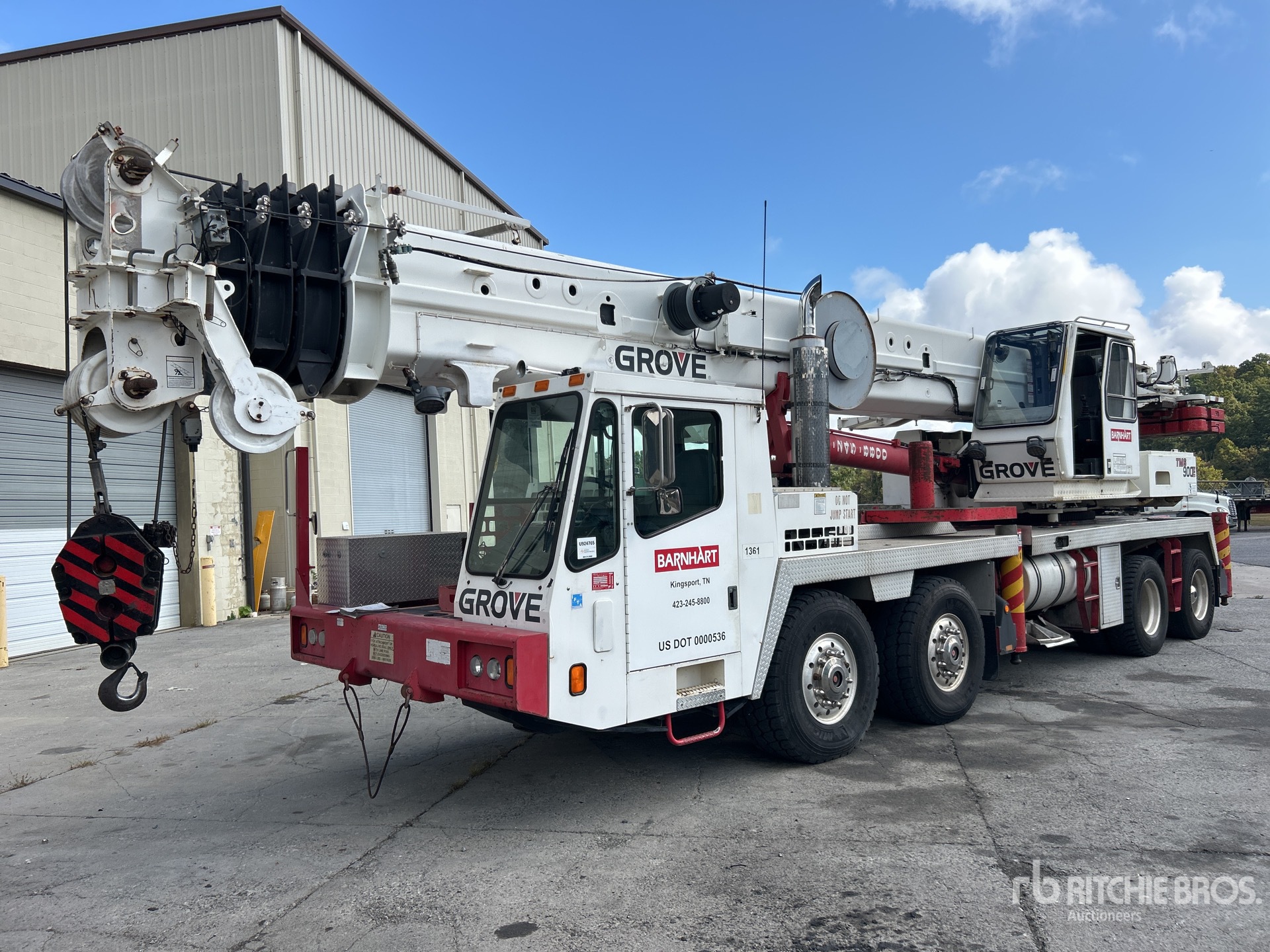

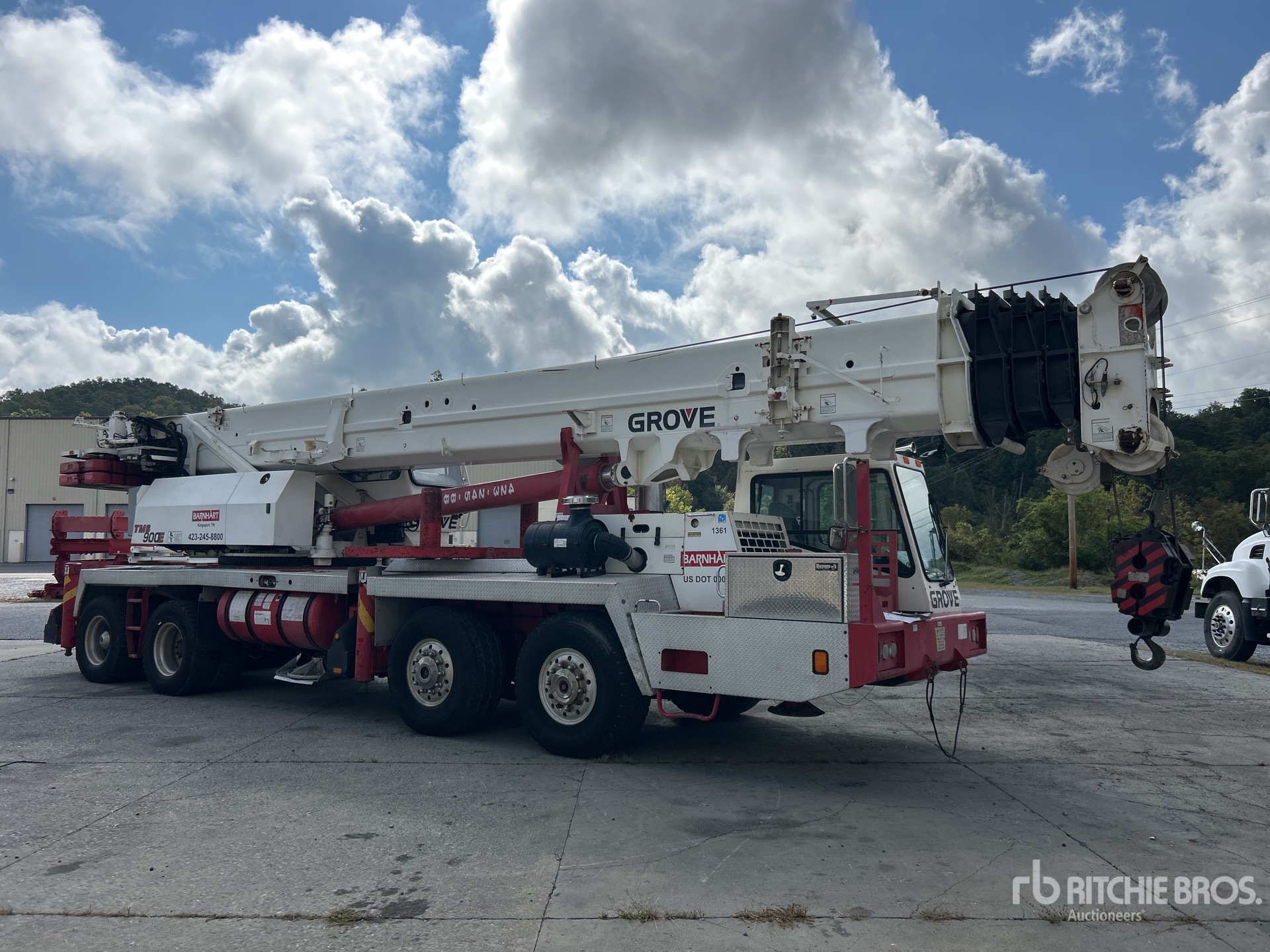

Picture, Right Front Corner

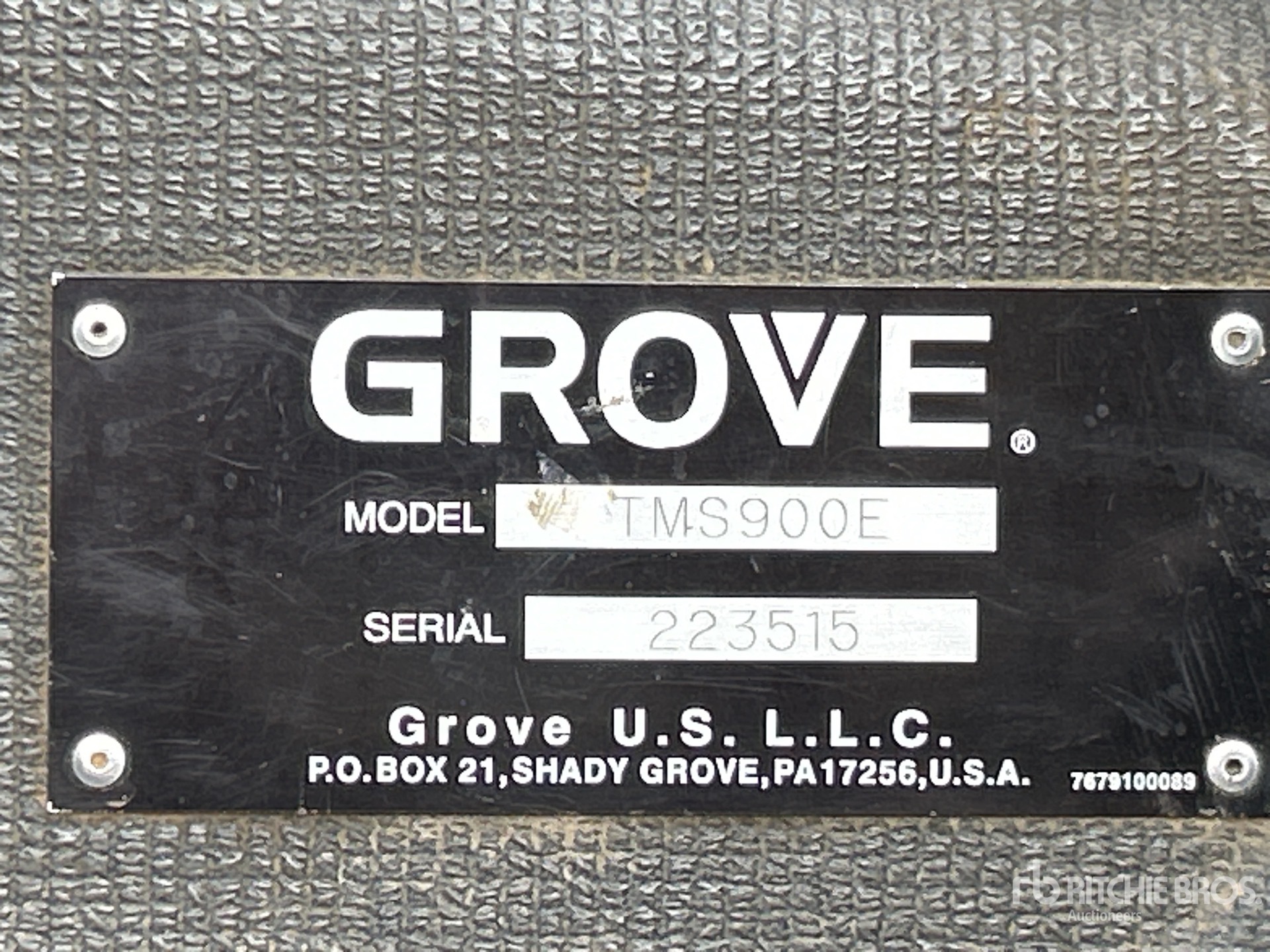

Serial Number / VIN
223515
Hour Meter / Odometer
SEE REPORT 4326 Hours; The age and condition of the indicates more hours than shown on the hours meter.-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational, Not operational
Safety Certification Label
There is a safety certification label with a date of 5/2/26
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
4326 hrs Carrier Engine
Mirrors
Window Controls
Operational
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Operational, Operational
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Engine Brake
Operational
Clutch
Engages
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Label
Blow-by (subjective visual observation)
Minor
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational
Clutch
Engages
PTO Pump
Operational
Steer Axle
Front Drive Axle
Rear Drive Axle
Limited Function Check - Carrier
The drivetrain was operational without a load.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Suspension Air Bags
Frame Condition
Tire Condition
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
Pumps (Hydraulics)
Valves
Dripping leak, The cab tilt cylinder has a dripping leak.
Hydraulic Tank
Hoses (Hydraulic)
Stabilizer Cylinders
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Hour Meter Reading
15412 Hours-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Seat Belts
Operational
Glass
Seats/Armrests
Horn
Operational
Safety Lock Out/Stop
Operational
Load Moment Indicator
Operational
Anti Two Block
Operational
Hydraulic Controls
Oil Pressure
The gauge registers in the operating range.
Exterior Lights
Operational
Warning Lights
Operational
Gauges
Operational
Hoist Brakes
Air Conditioner
Not operationally checked
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Chassis
Crane Superstructure
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Not equipped
Turntable Bearing
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
Hydraulic Motors
Valves
Dripping leak
Hoses (Hydraulic)
Some leaks
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Limited Function Check
The hydraulic system was operational. The cab tilt cylinder is leaking.
Specialty
Jib
Main Load Block
Overhaul Ball
Counterweights
Some weights are not on unit, but will be when buyer takes delivery.
