60 Photos
McElroy PitBull 412 Tracked Fusion Machine
Located
Lahoma, OK
Usage
2,119 hrs
Serial number
C15330
Inspection report:
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#12480180
In yard
No
Manufacturer
Model
Asset type
Serial number or VIN
C15330
Features
13 in Clamp SIze, On-Board Generator, Pipe Stands, Kubota D722 3 Cylinder 14.9 kW 719 cc Diesel Engine, 7 in Rubber Tracks
Notes
ITEM AT OFFSITE LOCATION MUST BE PICKED UP BY JANUARY 3RD OR WILL BE SUBJECT TO 3RD PARTY STORAGE FEES
General Appearance

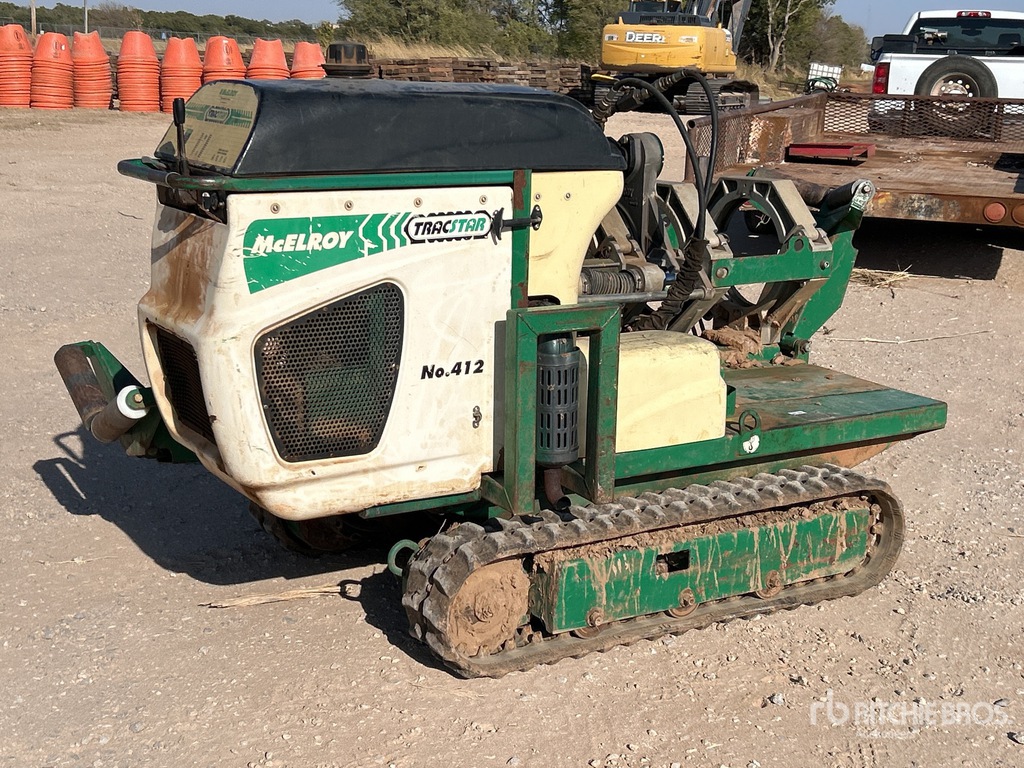

Picture, Left Front Corner

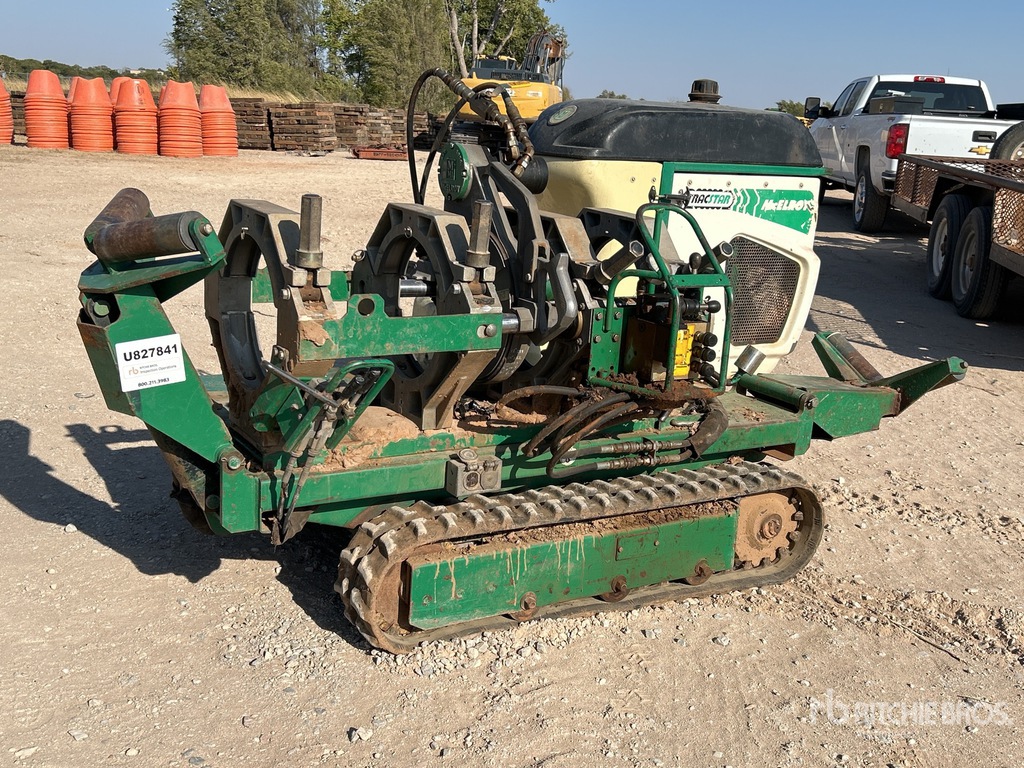

Picture, Left Rear Corner

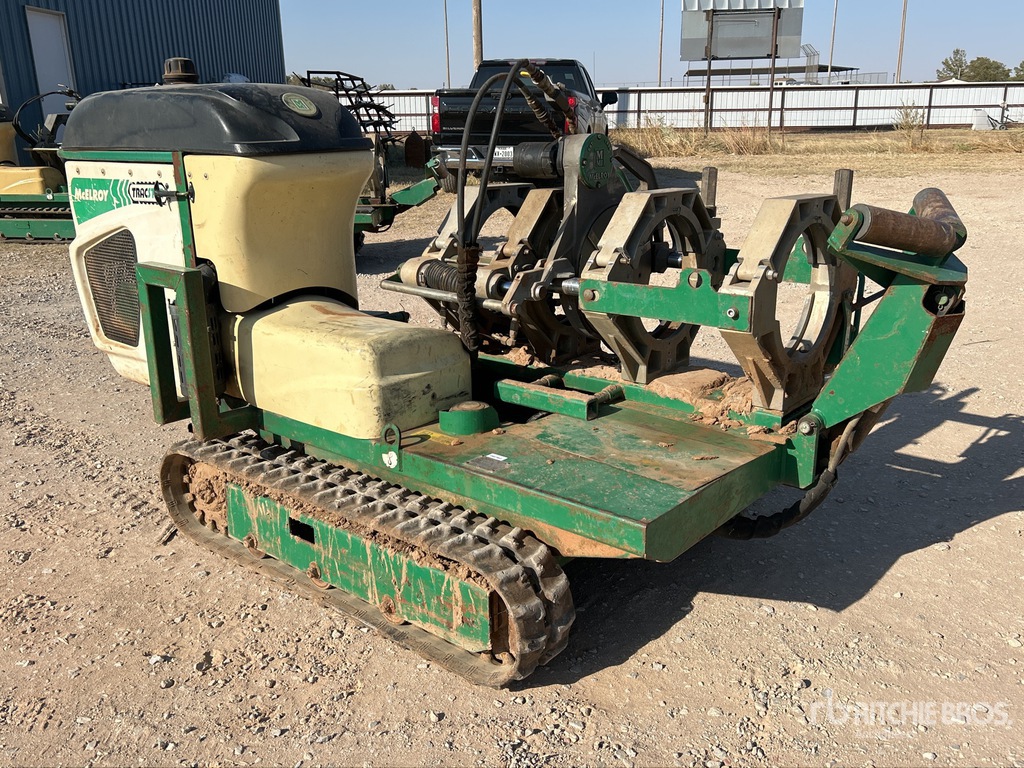

Picture, Right Rear Corner

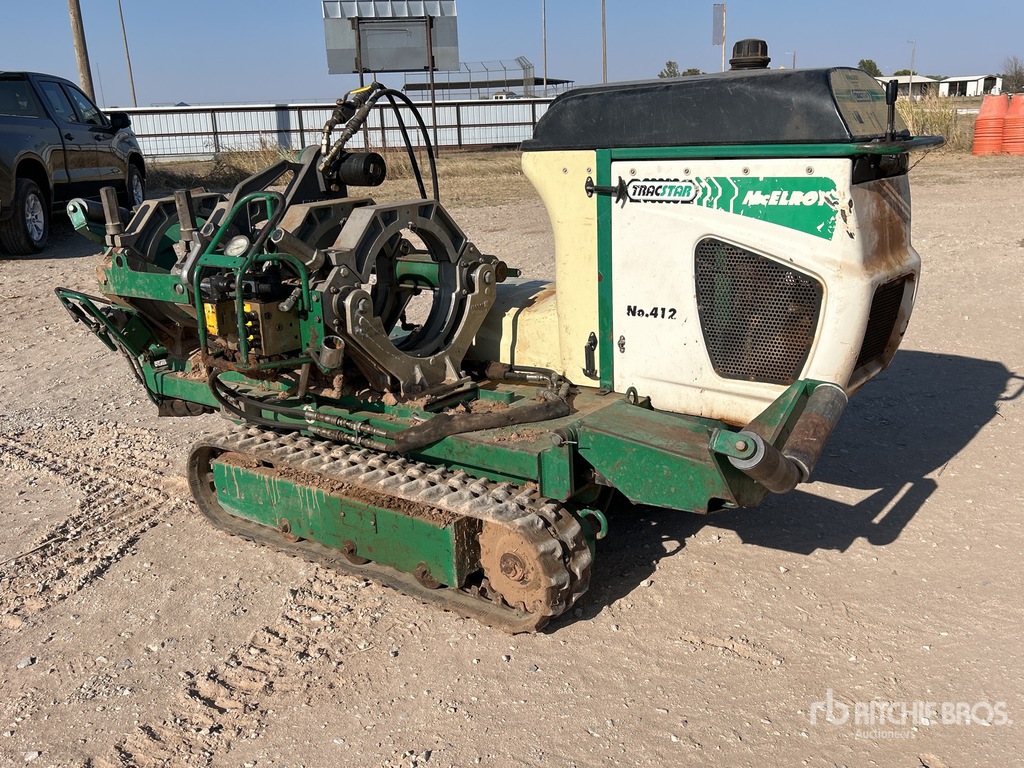

Picture, Right Front Corner
Serial Number / VIN
C15330, The serial number is not legible. This unit may be difficult to export.
CE Mark
No CE mark found
Hour Meter / Odometer
2119 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Hand Rails
Safety
Current Safety Manual
No
Current Operator/Maintenance Manual
No
Control Station
Engine Controls
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Label
Starter
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
After jump starting, the engine ran. The engine would not re-start after shutting down without jump starting.
Drivetrain
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Track)
The drivetrain was operational without a load.
Hydraulics
Pumps (Hydraulics)
Valves
Dripping leak, The front pipe stand won’t power down.
Hoses
Hydraulic Tank
Clamp Cylinders
Carriage Cylinders
Pipe stand cylinder seepage
Fusion Machine
Generator
Manufacturer: Mecc Alte, 6 KVA rating, The main components appear to be in place. The generator is producing electricity.
Pipe Clamps
Facer / Cutter
Pipe Lift
Feed Rollers
Frame Condition
Belly Pans
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
15 mm
Left Track Rollers
Left Front Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
15 mm
Right Track Rollers
Right Front Idler
Right Sprocket
Specialty
Pipe Stands
Front doesn’t Lowe with power, will bleed off if valve is engaged.
